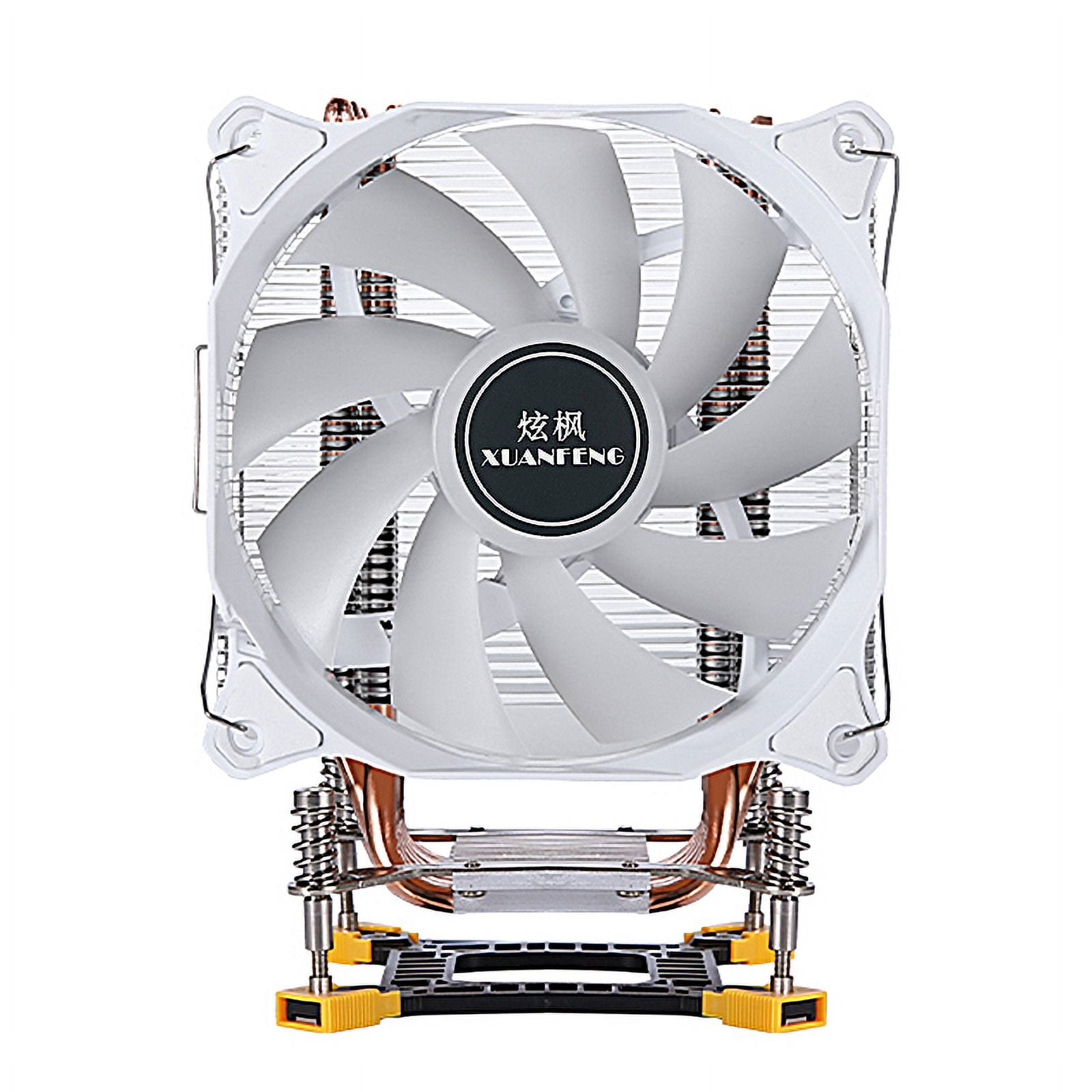

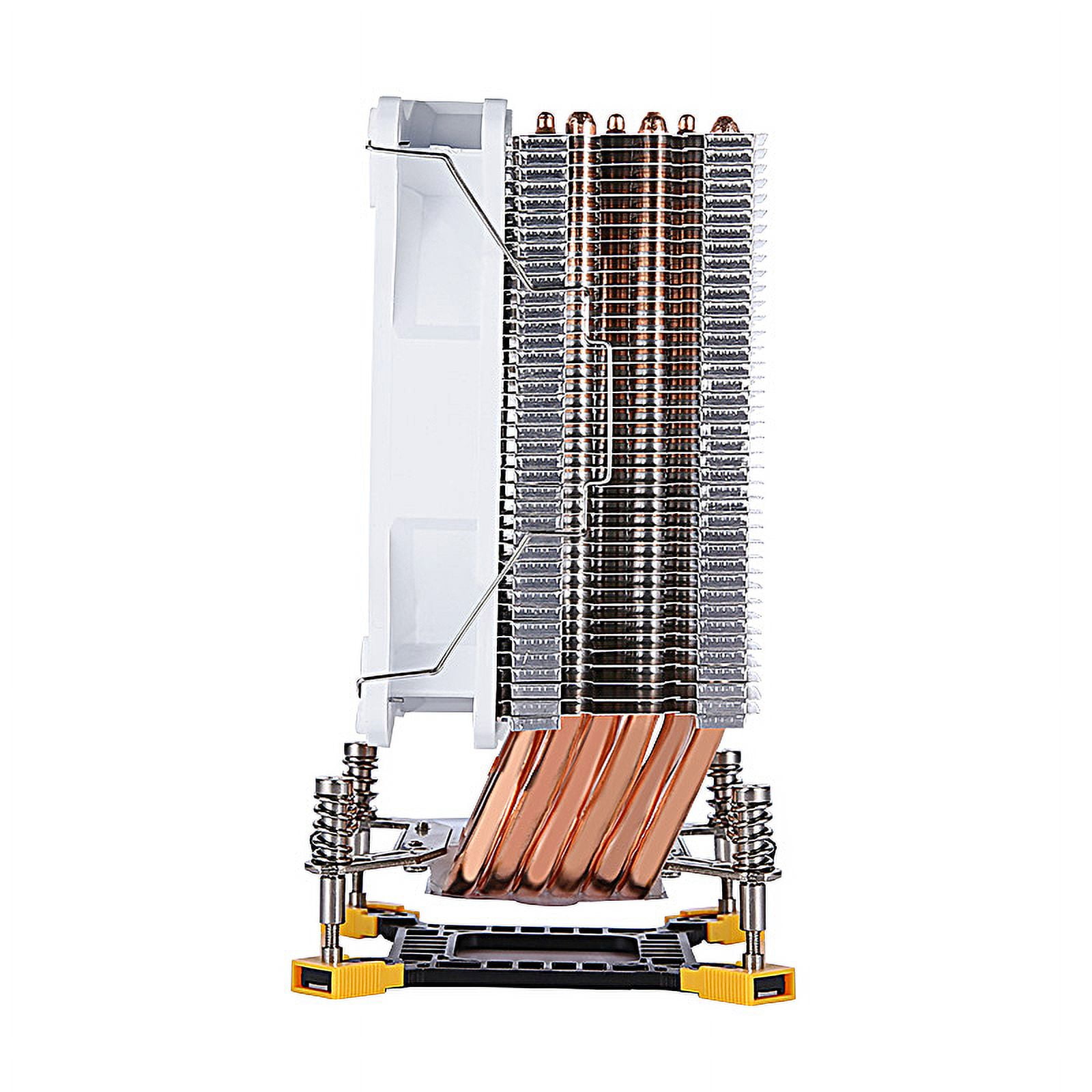

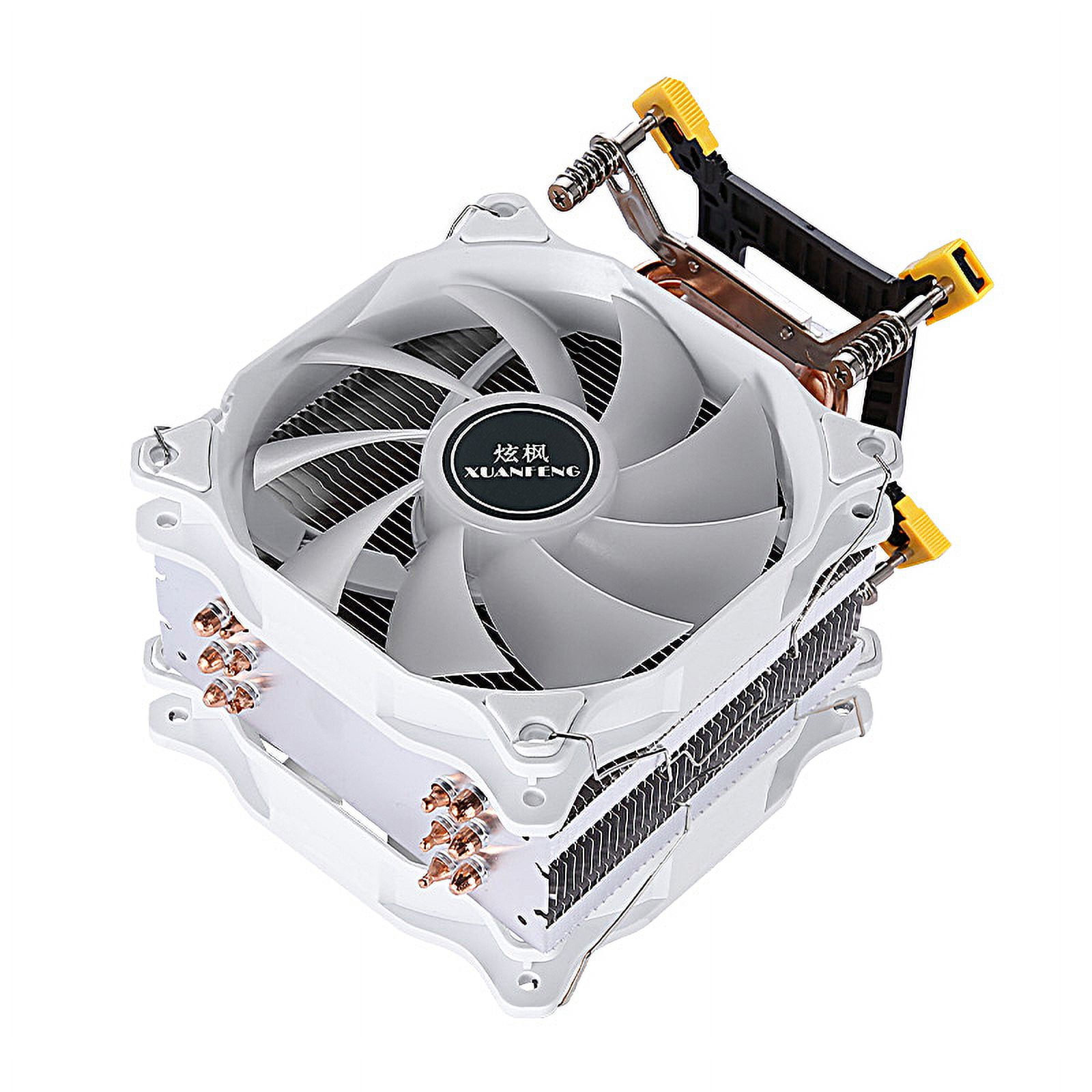

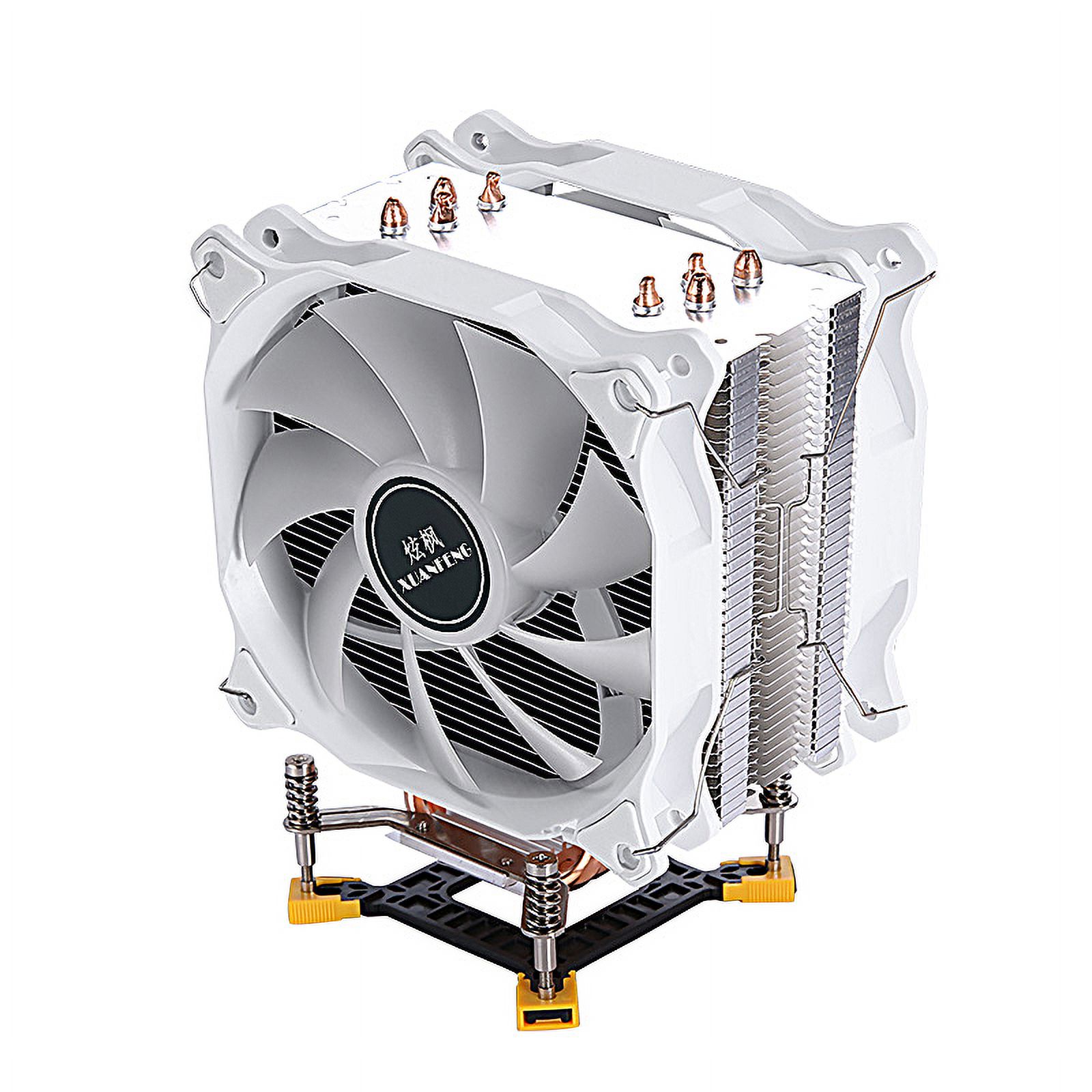

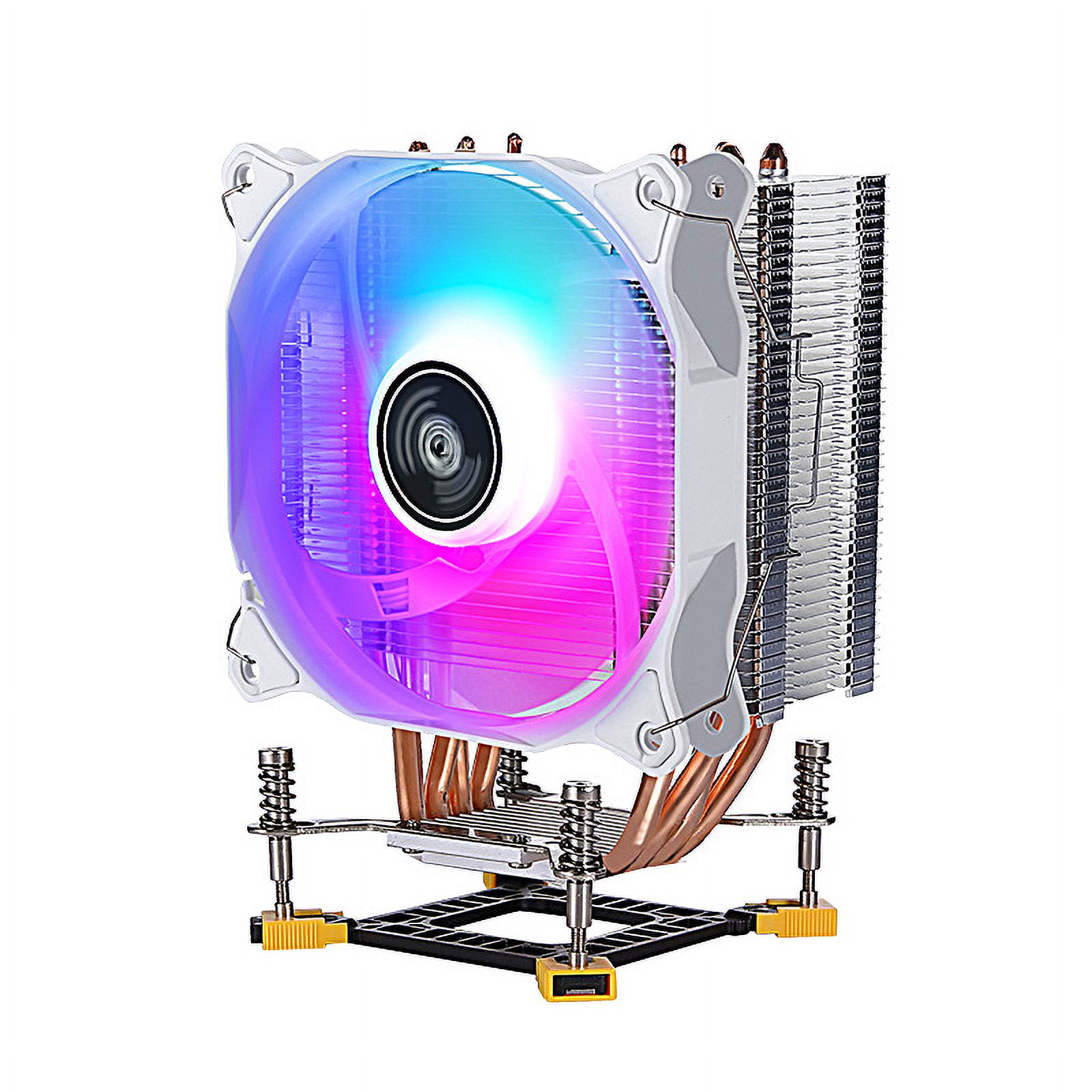

PC Radiator Air-cooled 120mm 4/6 Tower style Heat Pipe Efficient CPU Cooler Fan Installing LGA775 115x 1200 1700 1356 i3 i5 i7

<p></p> <p>Product brand: XUANFENG<br><br></p> <p>Product Name: CPU Cooling Fan<br><br></p> <p>120mm 4 Heat pipes 1-Fan Product size: 120 (length) * 74 (width) * 160 (height) millimeters<br><br></p> <p>120mm 4 Heat pipes 2-Fan Product size: 120 (length) * 99 (width) * 160 (height) millimeters<br><br></p> <p>120mm 6 Heat pipes 1-Fan Product size: 120 (length) * 72 (width) * 160 (height) millimeters<br><br></p> <p>120mm 6 Heat pipes 2-Fan Product size: 120 (length) * 97 (width) * 160 (height) millimeters<br><br></p> <p>Fan size: 120x120x25mm<br><br></p> <p>3 needle speed: 1200 rpm ± 10%<br><br></p> <p>4 needle speed: 600-1200 rpm ± 10%<br><br></p> <p>Maximum air volume: 68cfm<br><br></p> <p>Maximum noise: 30dBA<br><br></p> <p>3-pin current: No lamp 0.33A, lamp 0.4A ± 10%<br><br></p> <p>4-pin current: No lamp 0.12A, lamp 0.23A ± 10%<br><br></p> <p>3-pin power: no light, 4W with light, 4.8 W ± 10%<br><br></p> <p>4-pin power: No lamp 1.4W, lamp 2.8W ± 10%<br><br></p> <p>(The above data applies to one fan. If there are multiple fans (air volume, noise, current, power), the data will increase.).<br><br></p> <p>Fan bearings: hydraulic bearings<br><br></p> <p>Working voltage: DC 12V<br><br></p> <p>Processing materials: copper and aluminum<br><br></p> <p>Service life: 50000 hours<br><br></p> <p>Fan interface: 3-pin (3-wire constant speed)/4-pin (4-wire temperature control)<br><br></p> <p>Fan bearings: hydraulic bearings<br><br></p> <p>Packaging method: boxed<br><br></p> <p>Note:<br><br></p> <p>Due to manual measurement, different measurement methods and tools may result in slight dimensional deviations.<br><br></p> <p>Due to differences in lighting, angle, and display, images may not reflect the true color of the article.<br><br></p> <p>The following is an installation tutorial video for this product, hoping to be helpful to you. The products installed in the video are for reference only, but the installation method is the same.<br><br></p> <p></p> <p>Socket:<br><br></p> <p>For Intel: LGA 775/1150/1151/1155/1156/1200/1700/1356/1366 (i3 i5 i7 )<br><br></p> <p>Regarding the selection of interface types<br><br></p> <p>3Pin or 4Pin interfaces are universal and can be installed without worrying about interface types<br><br></p> <p>Fixed speed type: 3-pin fan, fixed speed, large air volume, good heat dissipation, but there may be relatively slight wind noise<br><br></p> <p>Temperature control board: The 4Pin fan will intelligently adjust the fan speed based on the current CPU temperature, which is energy-saving and silent. Extend service life! (The motherboard needs to support and enable PWM speed regulation function, which is basically available on all motherboards)<br><br></p> <p>The following is a tutorial on installing the LAG: 775/115x/1200/1700/1356/1366 CPU cooling fan. The product in the picture may be different from the one you purchased, but the installation method is the same.<br><br></p> <p></p> <p></p>
